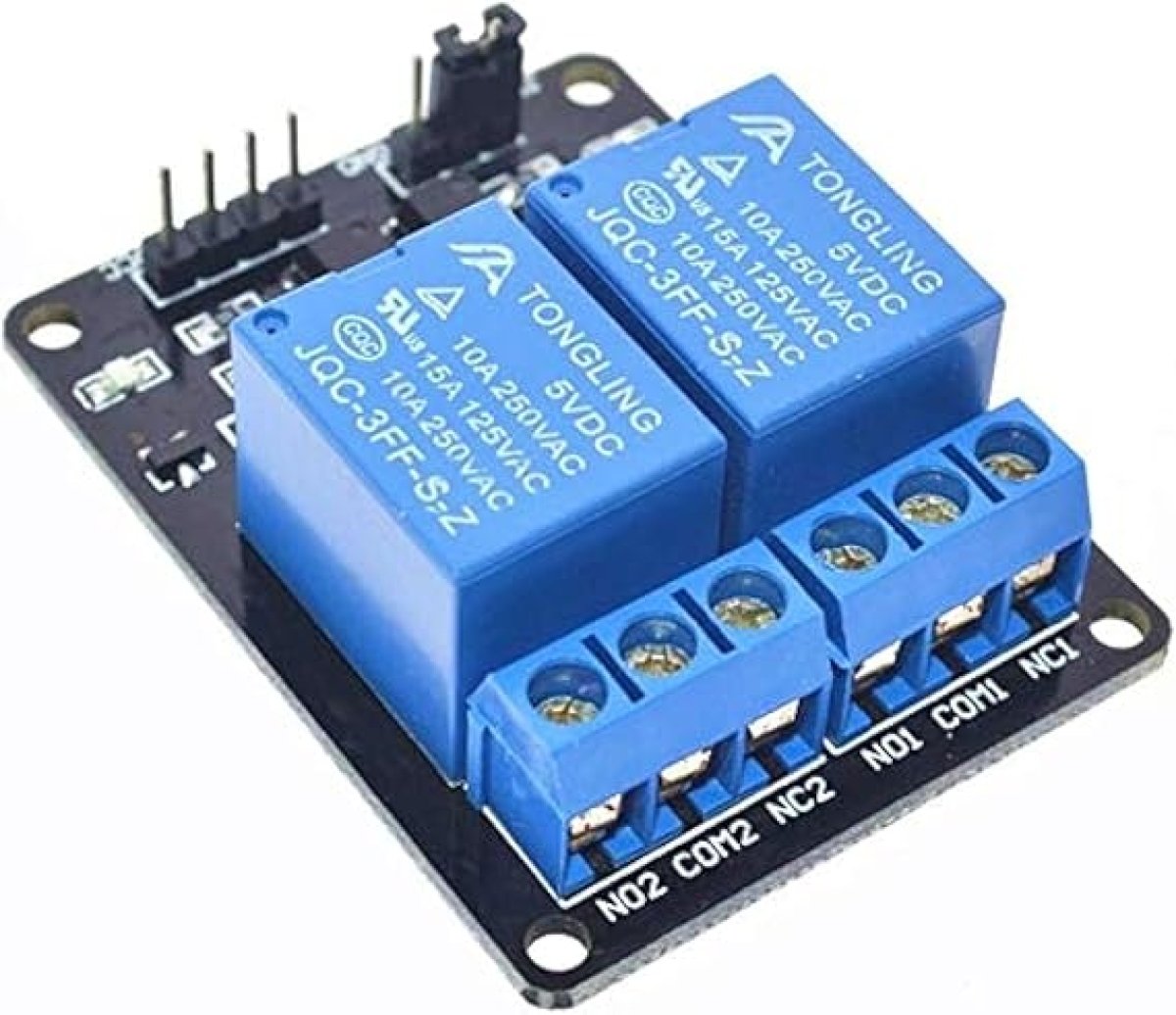

Arduino 5V 2 Channel Relay Module with Octocoupler for DIY Project

خصم جديد

Arduino 5V 2 Channel Relay Module with Octocoupler for DIY Project

~~65 ج.م~~ 55 ج.م 15.38% خصم

Features: 2 independently controlled relays. Switch AC up to 125/250VAC @ 10A. Switch DC up to 28VDC/30VDC @ 10A. Normally Open (NO) and Normally Closed (NC) contacts. LED indicators when relays are energized. 5V logic compatible. Specifications: Logic Input +5 Logic Compatible Logic...

كود المنتج: ‪37028553
التوافر: متاح
تصنيف: Modules

الكمية

Features:

2 independently controlled relays.
Switch AC up to 125/250VAC @ 10A.
Switch DC up to 28VDC/30VDC @ 10A.
Normally Open (NO) and Normally Closed (NC) contacts.
LED indicators when relays are energized.
5V logic compatible.

Specifications:

Logic Input		+5 Logic Compatible
	Logic High	> 2.8V
	Logic Low	< 1.2V
	Drive Current	< 5mA
Vcc	Typical	5V
Contact Rating	DC	28V/30V @ 10A
	125VAC	10A
	250VAC	10A
Dimensions	L x W x H	51 x 39 x 20mm

Pinout:

Pin	Description
GND	Connect to ground of the 5V power supply.
IN1	Relay control input 1. Logic LOW level energizes relay 1.
IN2	Relay control input 2. Logic LOW level energizes relay 2.
Vcc	Connect to 5V power supply.

Applications:

Switching mains‑powered lamps, fans, and small appliances under microcontroller control.
Controlling DC loads such as pumps, solenoids, and low‑voltage motors.
Home automation, IoT, and smart‑relay projects using Arduino or Raspberry Pi.
Industrial and educational control experiments requiring safe isolation between logic and load.
