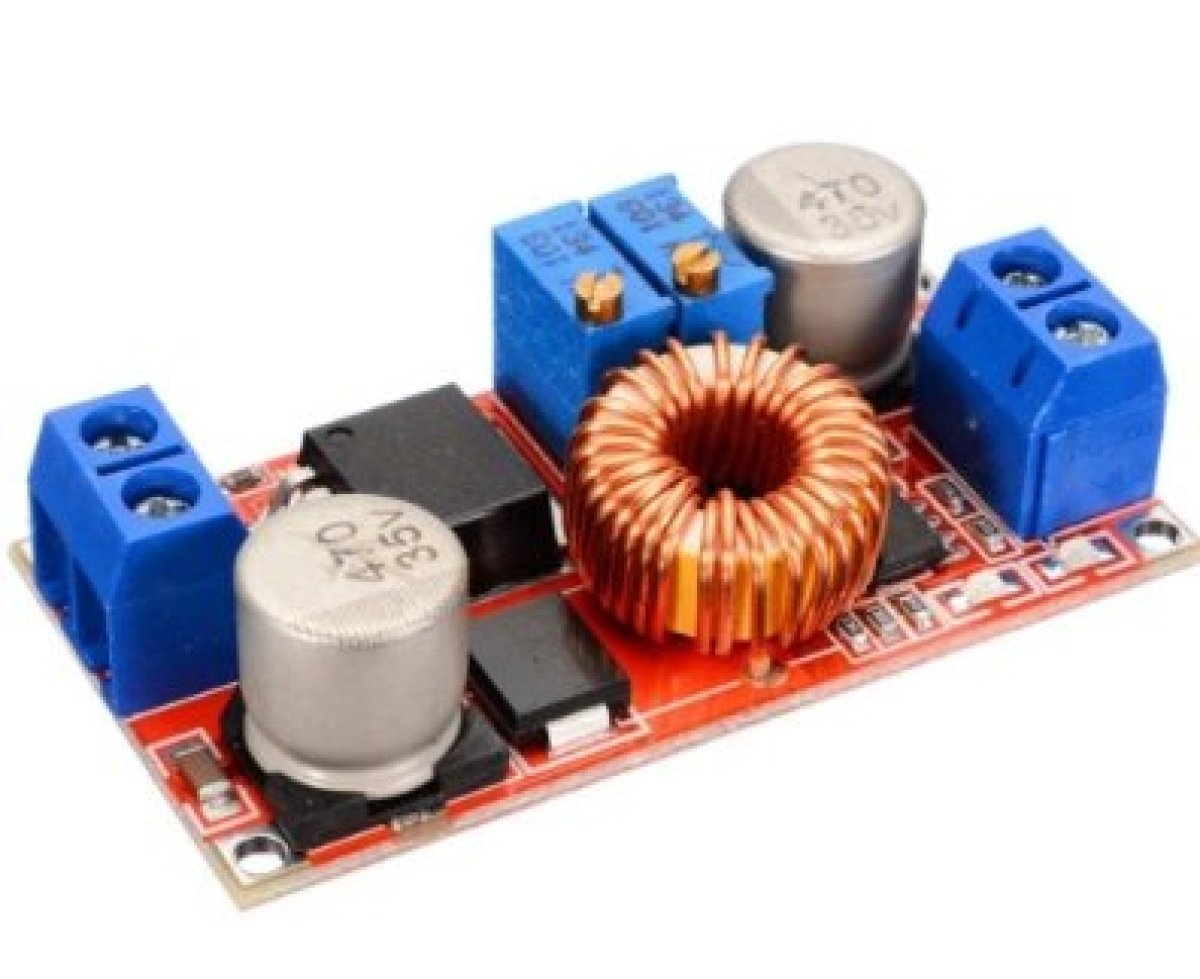

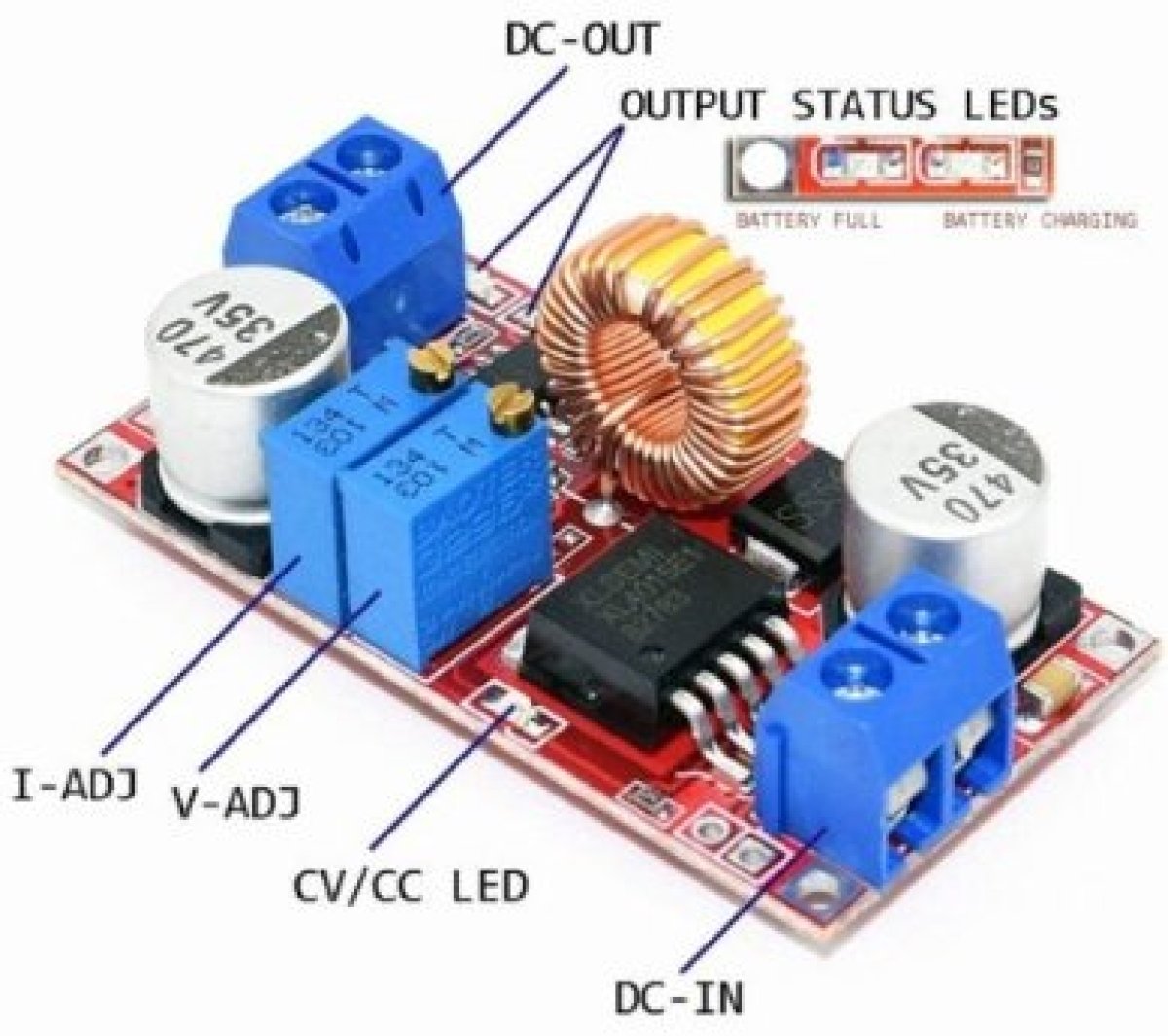

XL4015 DC-DC Step Down Module 5A with CV/CC Control

The XL4015 is an adjustable DC-DC Step-Down power supply buck converter module with adjustable constant current (cc) and constant voltage (cv) adjustment.

The module is a 300KHz set frequency step-down PWM buck DC-DC module that can handle an adjustable load range of 0-5A (maximum).

The XL4015 5A Adjustable CC CV Step Down DC Power Supply Module operates with high efficiency, low ripple and great line and load regulation and can step down the input voltage to a range of 0.8V – 30V DC at up to 5A.

Features:

• Adjustable Constant Current
• Adjustable Constant Voltage
• Current Limit Function
• Output Short Protection
